Solid polycarbonate sheet is made of polycarbonate. Polycarbonate sheet has good light transmittance and impact resistance. The UV coated makes it resistant to ultraviolet radiation. Polycarbonate sheet has dimensional stability and good molding and processing performance. It is often used in various canopy material panels, machine tool equipment window safety glass, billboards, transparent soundproof walls, etc.
Since the mechanical properties of polycarbonate solid sheet are so excellent, why does it still crack? Based on many years of practical experience, SINHAI polycarbonate solid sheet Manufacturer has analyzed and summarized the following reasons:
Solid polycarbonate sheet cracking scene 1: The newly installed endurance board canopy cracked on the second day.
Main reason analysis: Although the solid polycarbonate sheet is strong, it has a fatal disadvantage, which is that it is sensitive to notches. Please remember this disadvantage of the polycarbonate solid sheet to avoid unnecessary troubles in our future installation. The so-called notch sensitivity, in layman’s terms, is that when there is a notch (collapse, burr) on the edge of the sheet, the board will crack along the notch under the action of force.
So, how to avoid notches in the sheet?
1. When cutting the polycarbonate sheet, the edge of the sheet should always be kept smooth, and no small cracks should be produced.

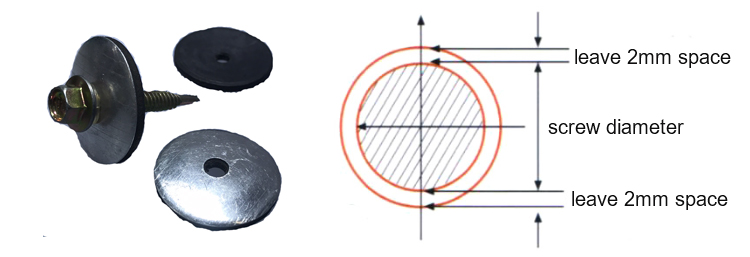

2. When the polycarbonate sheet needs to be fixed with screws (it is not recommended to fix the curved polycarbonate sheet canopy with screws), the hole should be enlarged first. Assuming that the diameter of the screw is 5mm, the diameter of the enlarged hole should be +4mm, that is, 9mm. When enlarging the hole, the edge of the hole should be smooth and there should be no small cracks.
Polycarbonate sheet cracking scene 2: The canopy installed for two years cracked, accompanied by aging or yellowing.
Main reason analysis: The polycarbonate sheet will crack due to its own aging. The reason for the aging of the polycarbonate sheet: the recycled polycarbonate sheet or the polycarbonate sheet without UV coating was purchased.
Other important precautions:
1. When the polycarbonate sheet canopy is curved, it is not recommended to fix it with screws on the board surface, because the curved polycarbonate sheet is elastic, and it is easy to crack between the polycarbonate sheet and the screw hole under the action of internal stress. Special aluminum profiles can be used to install curved polycarbonate canopies, which can avoid nailing on the board surface.
2. Be sure to use neutral silicone sealant, and do not use acidic or alkaline glue for sealing. Polycarbonate is not resistant to acid and alkali. Contact with acid and alkali substances will cause the molecular chain of polycarbonat to be damaged and cracked.
3. It is strictly forbidden to use rivets to fix and install endurance boards.
4. When installing the solid polycarbonate sheet canopy with screws, be sure to use a buffered waterproof gasket to prevent the screws and the board from being locked too tightly and causing the sheet to break. In actual applications, it is found that the board cracking caused by this is the most common, especially when the canopy frame spacing is large and the polycarbonate solid sheet is particularly thin. When the wind blows the board surface up and down, it is easy to cause cracking at the screw hole position. In previous cracked canopy cases, it is not difficult to find that more than 80% of the cracking starts at the screw hole position.
The installation of the polycarbonate solid sheet canopy is not a simple screw fixation. Before installation, you must first change the previous rough installation concept. Each of the above viewpoints is crucial. I hope you can read and understand it carefully. If you have any questions, please contact SINHAI Polycarbonate Sheet Company.
