The SINHAI factory has 4 production lines for polycarbonate hollow sheets, which can produce two-layer, multi-layer, honeycomb, and crystal sheets. The color and size can be customized. Cheaper than solid sheets, lightweight and easy to install. It integrates daylighting thermal insulation and sound insulation. It can provide shade from the sun and rain, High cost performance, the product is flame retardant to B1 level. Our factory specializes in special panels for greenhouses, which can protect against ultraviolet rays and fog droplets. Make crops more productive. Hot selling thickness 4mm, 6mm, 8mm, 10mm.

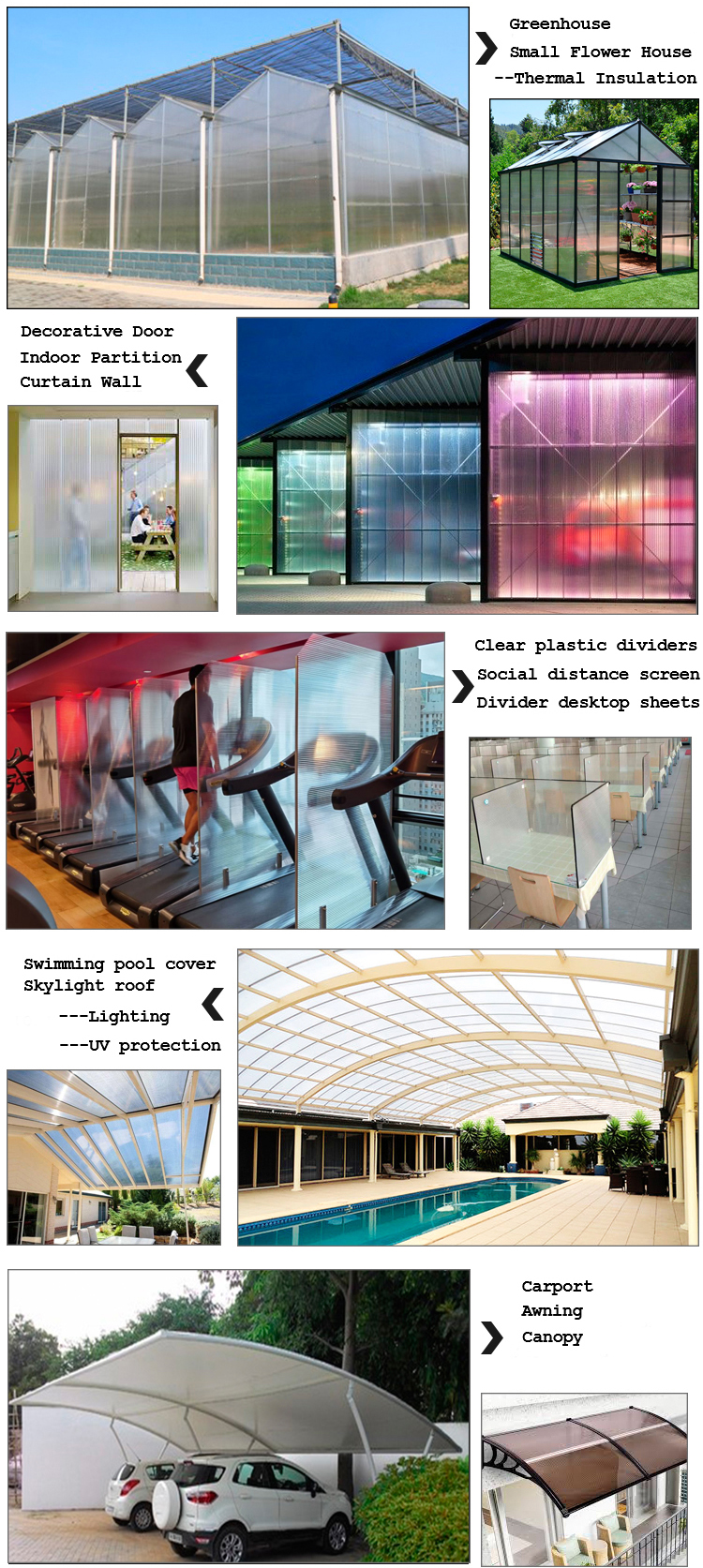

Polycarbonate hollow sheet application:
Exotic decorations in gardens and entertainment venues and pavilions in resting places;
Internal and external decoration of commercial buildings, curtain walls of modern urban buildings;
Aviation transparent containers, motorcycle front windshields, airplanes, trains, ships, cars, motorboats, submarines and glass military and police shields;
The layout of telephone booths, advertising street signs, light box advertisements, and display exhibitions;
Instruments, meters, high and low voltage switch cabinet panels and military industry, etc.;
High-end interior decoration materials such as walls, ceilings, and screens;
Noise barriers for highways and urban elevated roads;
Polycarbonate hollow sheet installation method:
Conditions for solid edges:
Regardless of dry assembly method or wet assembly method, regardless of horizontal, vertical and inclined installation. In the installation project of hollow polycarbonate sheets, it is very important to tighten the edges. The following two points must be paid attention to:
Effective space must be left in the connection profile or in the groove of the frame to allow expansion and load displacement of the panels. The linear thermal expansion coefficient of the hollow polycarbonate panel is 7×10m/m.k, that is, for every 1°C increase in temperature, the 1m×1m panel will expand by 0.075mm along the length direction. The user must calculate the installation gap data based on the temperature difference between the four seasons in the project location: For example, in the northern region, the highest temperature is 40°C and the lowest temperature is -30°C. The reserved clearance for 1m×1m plate installation is 0.07×70=4.9mm.
Polycarbonate hollow sheet installation steps: 1. Transport the board to the installation location; 2. Tear off the protective film on the bottom of the first board; 3. Position it with a cap; 4. Remove the protective film on the bottom of the second board; 5. Position it with a cap; 6. Attach waterproof tape to the joint between the two boards; 7. Press the bead directly above the waterproof tape;
The sealing technology of polycarbonate hollow sheets is the original tape on the polycarbonate sheet. It is only used to temporarily protect the edge of the board and is not resistant to aging. During the installation project, the sheet is cut according to size. After cutting, the board end holes must be sealed with engineering special tape according to the requirements of the installation regulations, and the original tape must be replaced. The special tape for installation projects should have good weather resistance and can be used for a long time without losing its adhesiveness and mechanical strength during installation operations and when applying the tape. Pay attention to the following points; (1) Ensure that the edges of the board are smooth. (2) To blow all holes clean, the compressed air must be free of any impurities and dry. (3) Ensure that the tape is completely covered with profiles, metal covers, and U-shaped protective grooves at the ends. After installation is completed, there should be no exposed parts. Cleaning methods for solar panels (1) When cleaning, they must be rinsed with warm water below 60°C. (2) Use neutral detergent when cleaning. Detergents that are corrosive to solar panels are not allowed. (3) Use a soft cloth or sponge dipped in neutral liquid to scrub gently. It is forbidden to clean with coarse cloth, brush, mop and other hard and sharp tools. Cold bending requirements of solar panels The biggest feature of hollow solar panels is that they can be cold-bent into arches with different bending radii along the direction of the ribs, which not only increases the lighting area, but also meets the bending requirements of architectural art design. It also improves the load-bearing capacity of the plate, which is beyond the reach of ordinary glass.
During installation, the construction organizer must clearly understand the text instructions and precautions printed on the protective film, and explain it to the operator, paying special attention to the standard of which side faces outward. Never install it wrongly.
