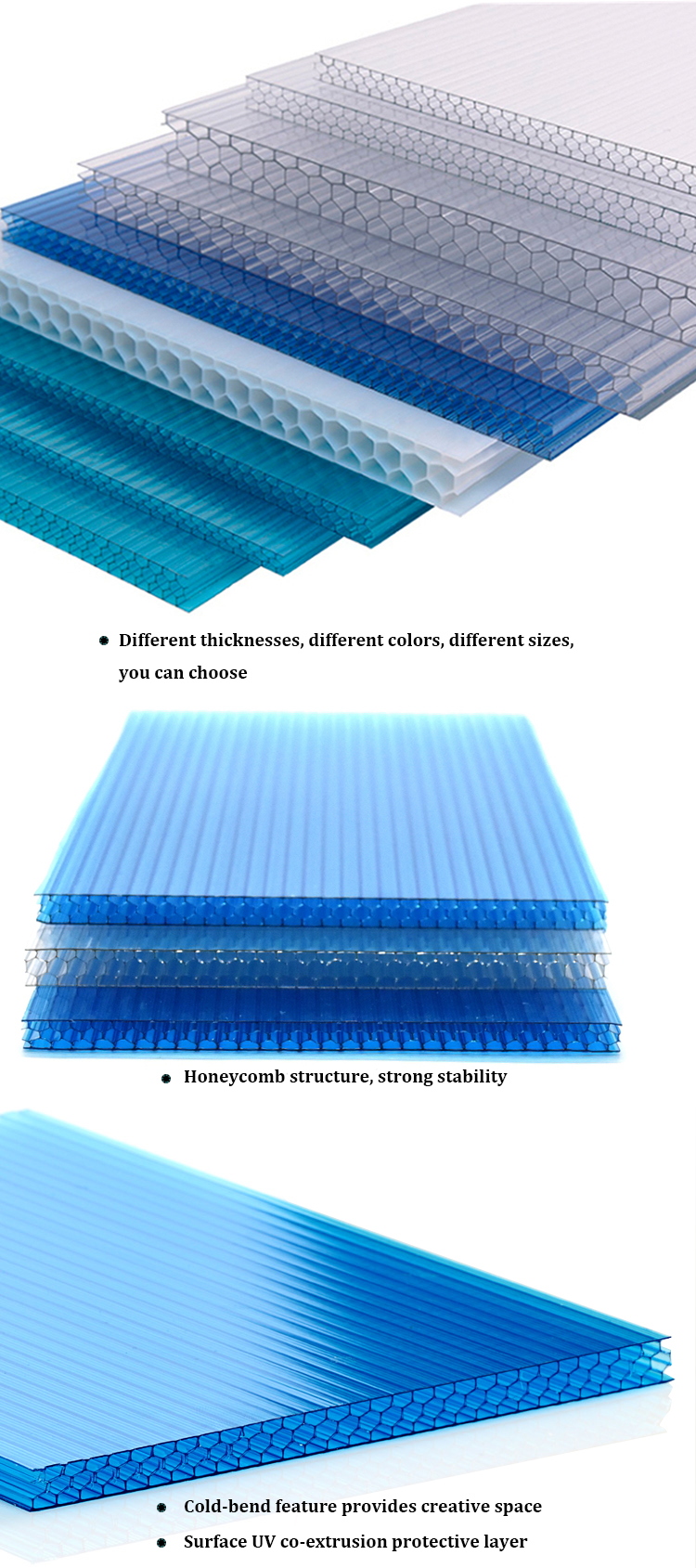

PC honeycomb polycarbonate sheets, a panel with many small holes, have many advantages such as stable structure, low material consumption, wide coverage, high strength and lightweight structure. The honeycomb core with six-sided cylinders connected to each other is like countless I-beams. The layer distribution is fixed within the entire sheet surface, making the board more stable, more resistant to bending and compression, and its wind pressure resistance greatly exceeds that of ordinary double-layer hollow polycarbonate sheet.
Honeycomb polycarbonate panel product features:
1. Honeycomb polycarbonate sheet light transmittance: good lighting, transparency comparable to glass. UV-coated sheets will not produce yellowing, fogging, or poor light transmission when exposed to sunlight. After ten years, the light transmission loss is only 6%. The light transmission loss rate of PVC material sheets is as high as 15%-20%. Glass The light transmittance loss rate of fiber material sheets is 12%-20%.
2. Honeycomb polycarbonate sheet is anti-ultraviolet: One side of the hollow polycarbonate sheet is coated with an anti-UV coating, and the other side has anti-condensation treatment, integrating anti-uv, heat insulation and anti-drip functions. It can block the passage of ultraviolet rays and is suitable for protecting valuable artworks and exhibits from ultraviolet damage.
3. Honeycomb polycarbonate sheets are light in weight: the specific gravity is only 1/12 of ordinary glass, and it is not easily broken, saving the cost of transportation, handling, installation and supporting frames.
4. Honeycomb polycarbonate sheets are flame retardant: National standard GB50222-95 confirms that hollow polycarbonate sheets are flame retardant to the first level, that is, B1 level. The ignition point of the hollow polycarbonate sheet is 580 degrees Celsius. It will self-extinguish after being removed from the fire. It will not produce toxic gases when burning and will not contribute to the spread of the fire.
5. Flexibility of honeycomb panels: It can be cold-bent at the construction site according to the design drawings, and installed into arches, semi-circular roofs and windows. The minimum bending radius of the plate is 175 times the thickness of the plate, and it can also be hot-bent.
6. Honeycomb panel sound insulation: The sound insulation effect of solar panels is obvious, and it has better acoustic insulation than glass and acrylic panels of the same thickness. Under the same thickness, the sound insulation of solar panels is 3-4DB higher than that of glass. Internationally, it is the preferred material for highway noise barriers.
7. Honeycomb polycarbonate sheets are energy-saving: they keep cool in summer and keep warm in winter. The thermal conductivity (K value) of polycarbonate sheets is lower than that of ordinary glass and other plastics, and the thermal insulation effect is 7%-25% higher than that of the same glass. Thermal insulation is 49% higher. As a result, the heat loss is greatly reduced, and it is an excellent material for buildings with heating equipment.
8. Temperature adaptability of honeycomb polycarbonate panels: The polycarbonate panel does not become cold and brittle at -100°C, does not soften at 135°C, and has no significant changes in its mechanics and mechanical properties in harsh environments.
9. Honeycomb polycarbonate panel weather resistance: polycarbonate sheets can maintain the stability of various physical indicators in the range of -40°C to 120°C. After 4,000 hours of artificial climate aging test, the yellowing degree was 2 and the light transmittance reduction value was only 0.6%.
10. Honeycomb polycarbonate sheet anti-condensation: When the outdoor temperature is 0℃, the indoor temperature is 23℃, and the indoor relative humidity is lower than 80%, there will be no condensation on the inner surface of the material.
